Dimensions, including the middle and upper rack (length x width x height): 585mm x 332mm x 198mm
Dimensions, only stove (length x width x height): 525mm x 225mm x 97mm
Burner dimensions: 8.6 inches (219 mm diameter)
Horizontal distance from the center of the burner to the tube inlet: 395±2.5mm
Detachable middle and upper rack dimensions: 332 mm diameter, 198 mm height
Gas connector hose:
For bottled gas cylinder: 9.5±0.5mm inside diameter rubber hose
For natural gas: 12.7±0.6mm inside diameter rubber hose
Inlet: on the left of the standard product (can be customized to the right)
★Dimension Diagram

Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Suitable for cooking soup or brewing broth.
•Suitable use for bottled gas cylinder(includes natural gas).
【Uses the bottled gas cylinder. Please use the 280~500 mmH2O low-pressure regulator. Do not use regulators over 500 mmH2O】

Features:
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Medium heat; medium heat is slightly brighter and produces a lot of heat, generally used for braising and boiling.
•Enlarged tip on each branch results in moderate cooking power.

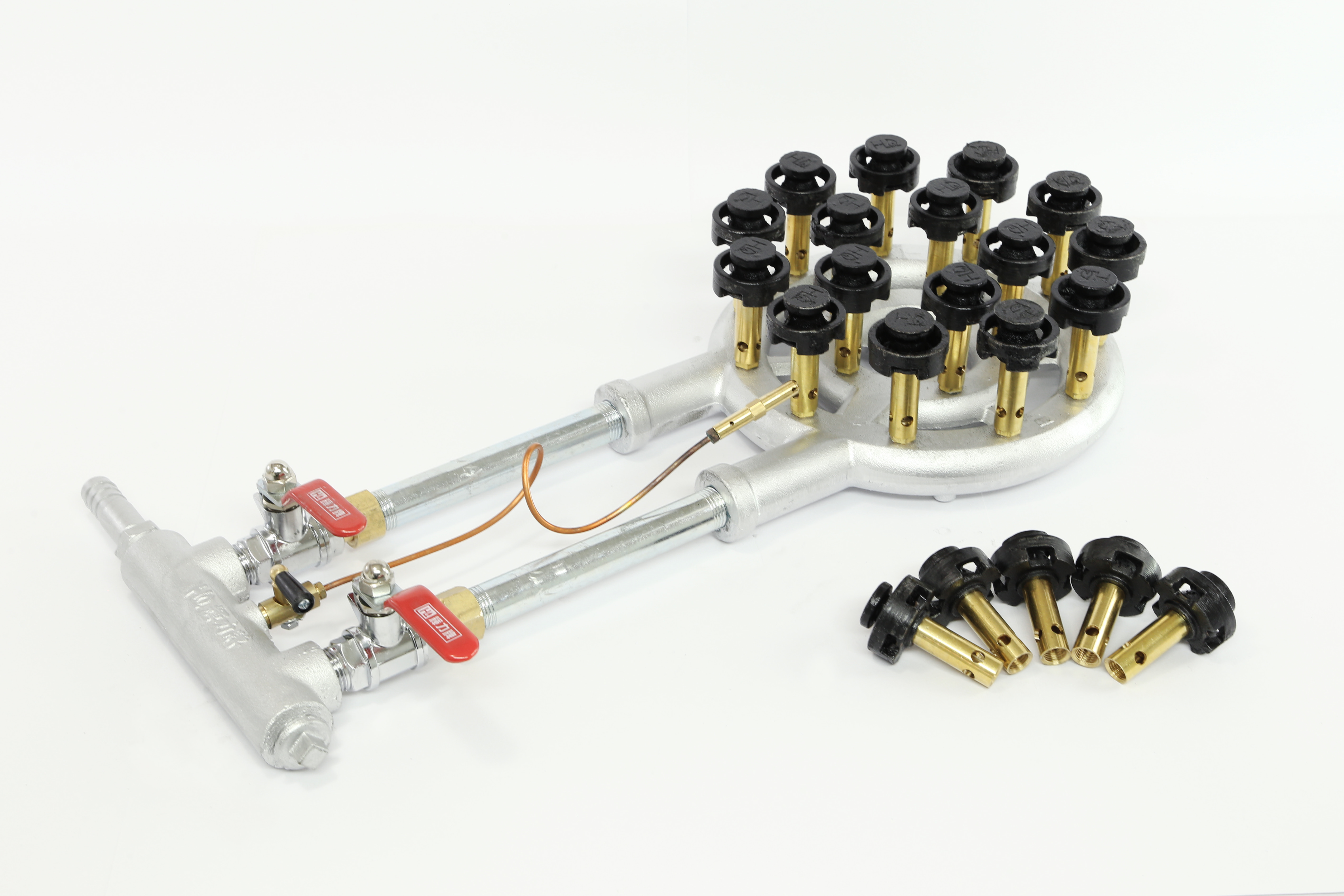

•Double-tube switch can control the heat of the inner and outer disk separately. Greater flexibility in heat adjustments.
•Manual ignition switch, requires external source of ignition.
•Left knob of the manual ignition switch is the outer ring main burner, right knob is the inner ring main burner, middle knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.

16-core Low Pressure Gas Spray Stove heat and volume test:
▲Tested with 2000 mL lukewarm water on high heat
    Tested with 25000 mm H2O standard gas pressure value
•Heat performance: water boils in 3 minutes and 24 seconds
•Volume performance: 70.4db-71.9db
