Dimensions, including the middle and upper rack (length x width x height): 570mm x 308mm x 182mm
Dimensions, only stove (length x width x height): 490mm x 195mm x 95mm
Burner dimensions: 7.3 inches (187 mm diameter)
Horizontal distance from the center of the burner to the electrical switch inlet: 332±2.5mm
Detachable middle and upper rack dimensions: 308 mm diameter, 182 mm height

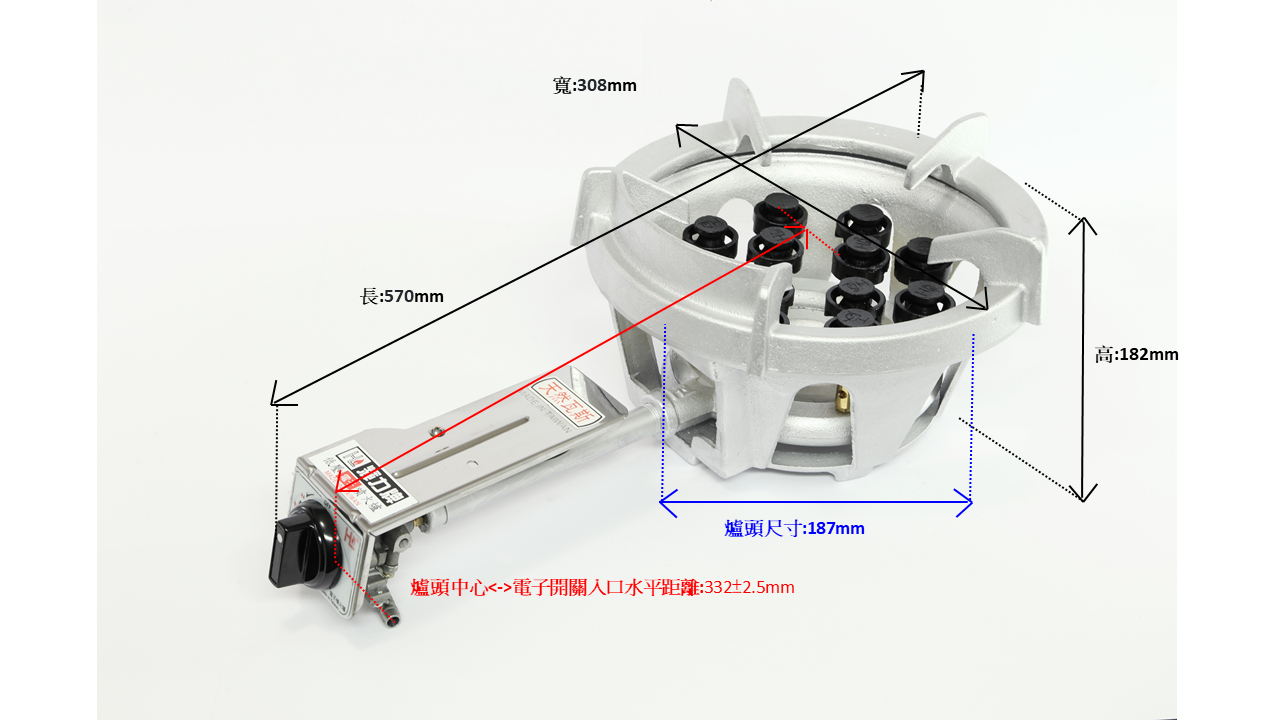

★Dimension Diagram

Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Suitable for cooking soup or brewing broth.
•Suitable use for bottled gas cylinder(includes natural gas).
【Uses the bottled gas cylinder. Please use the 280~500 mmH2O low-pressure regulator. Do not use regulators over 500 mmH2O】

Features:
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Medium heat; medium heat is slightly brighter and produces a lot of heat, generally used for braising and boiling.
•Enlarged tip on each branch results in moderate cooking power.
•Equipped with electrical ignition system.
