Dimensions, including the middle and upper rack (length x width x height): 570mm x 308mm x 182mm
Dimensions, only stove (length x width x height): 495mm x 188mm x 82mm
Burner dimensions: 7.3 inches (187 mm diameter)
Horizontal distance from the center of the burner to the electrical switch inlet: 332±2.5mm
Detachable middle and upper rack dimensions: 308 mm diameter, 182 mm height

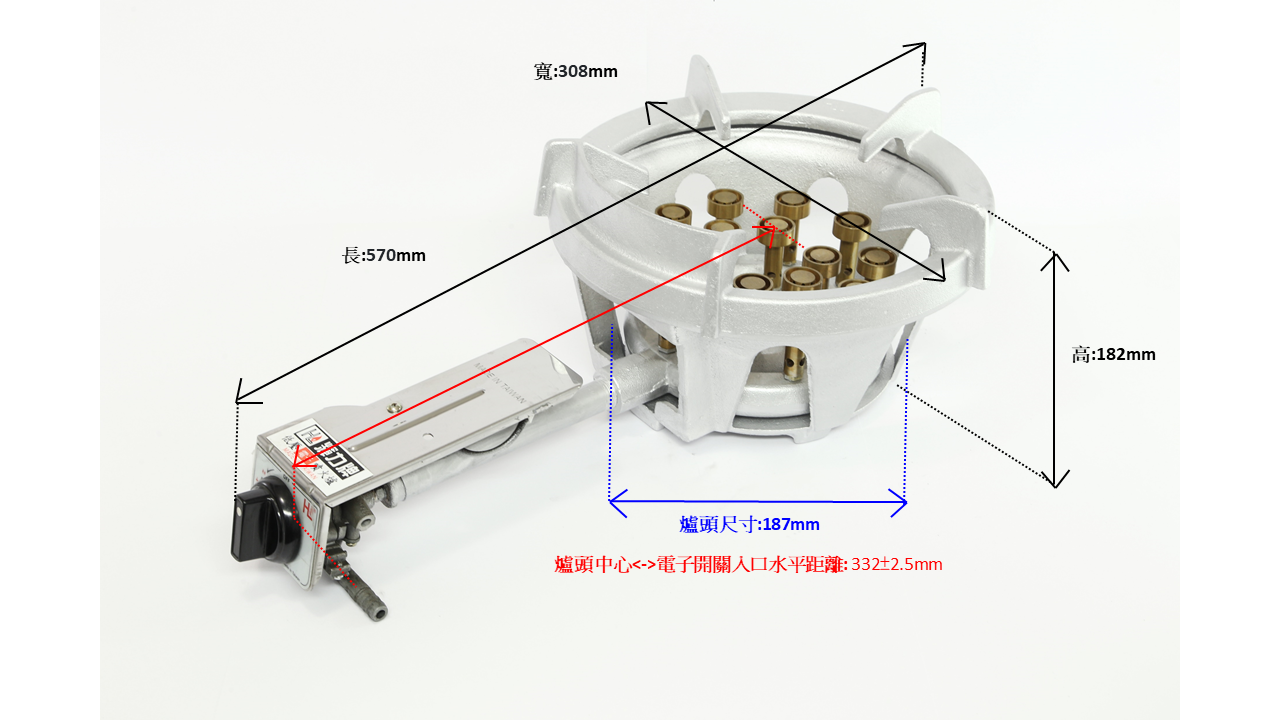

★Dimension Diagram

Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Suitable for cooking soup or brewing broth.
•Suitable use for bottled gas cylinder(includes natural gas).
【Uses the bottled gas cylinder. Please use the 280~500 mmH2O low-pressure regulator. Do not use regulators over 500 mmH2O】

Features:
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Medium heat; medium heat is slightly brighter and produces a lot of heat, generally used for braising and boiling.

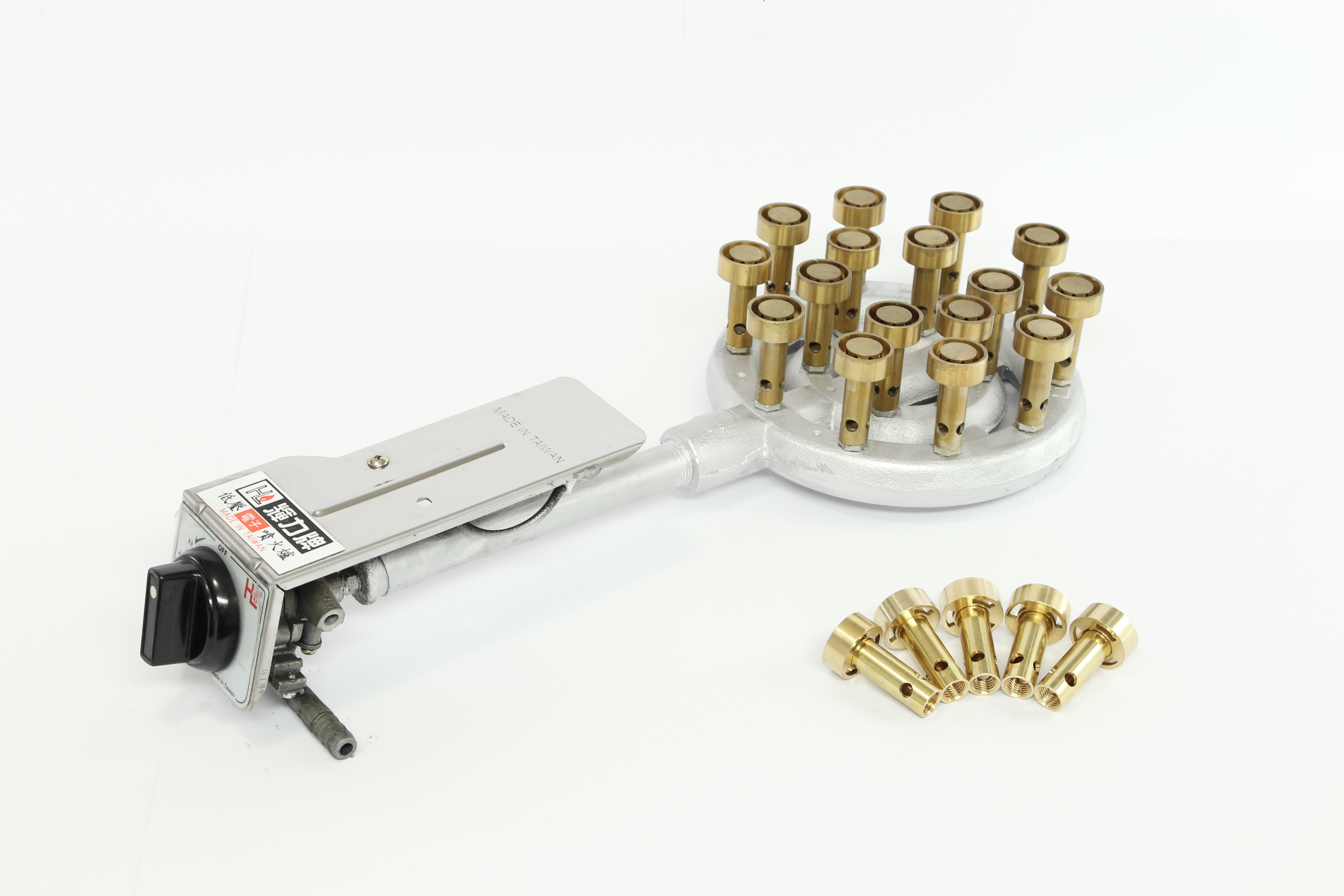

•Copper burner reduces the likelihood of corrosion, durable, medium heat.
•Equipped with electrical ignition system.

16-core Low Pressure Electrical Spray Stove (Copper material) heat and volume test:
▲Tested with 2000 mL lukewarm water on high heat
    Tested with 500mmH2O standard gas pressure value
•Heat performance: water boils in 5 minutes and 47 seconds
•Volume performance: 69.5db-69.9db
