Huei Lih Stove-Prepared meal after meal of delicacies
2020.05.20

5B Commercial Stove


Dimensions, including the middle and upper rack (length x width x height):
503mm x 340mm x 185mm
Burner dimensions: 5 inches (128.5 mm diameter)
Distance from the center of the burner to the center of the switch knob: 303±2.5mm
Detachable middle and upper rack dimensions: 340 mm diameter, 185 mm height
★Dimension Diagram
Elongated 5B Commercial Stove【picture 3】
Dimensions, including the middle and upper rack (length x width x height): 650mm x 340mm x 185mm
Distance from the center of the burner to the center of the switch knob: 485±2.5mm
Functions:
Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
Ideal for stir-frying on high heat.
•Suitable for bottled gas cylinder only. Liquefied natural gas cannot be used because of low pressure.
【Please use the Hueilih medium-pressure regulator】
Features:
High-heat, fast-cooking stove with an ideal air-fuel ratio.
High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
Silver-painted inner and outer flame disks induce greater cooking power.
•Manual ignition switch, requires external source of ignition.
•Left knob of the manual ignition switch is the main burner, right knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.
5B Commercial Stove heat and volume test:
▲Tested with 2000 mL lukewarm water on high heat
    Tested with 25000 mm H2O standard gas pressure value
•Heat performance: water boils in 1 minutes and 59 seconds
•Volume performance: 73.7db-75.3db

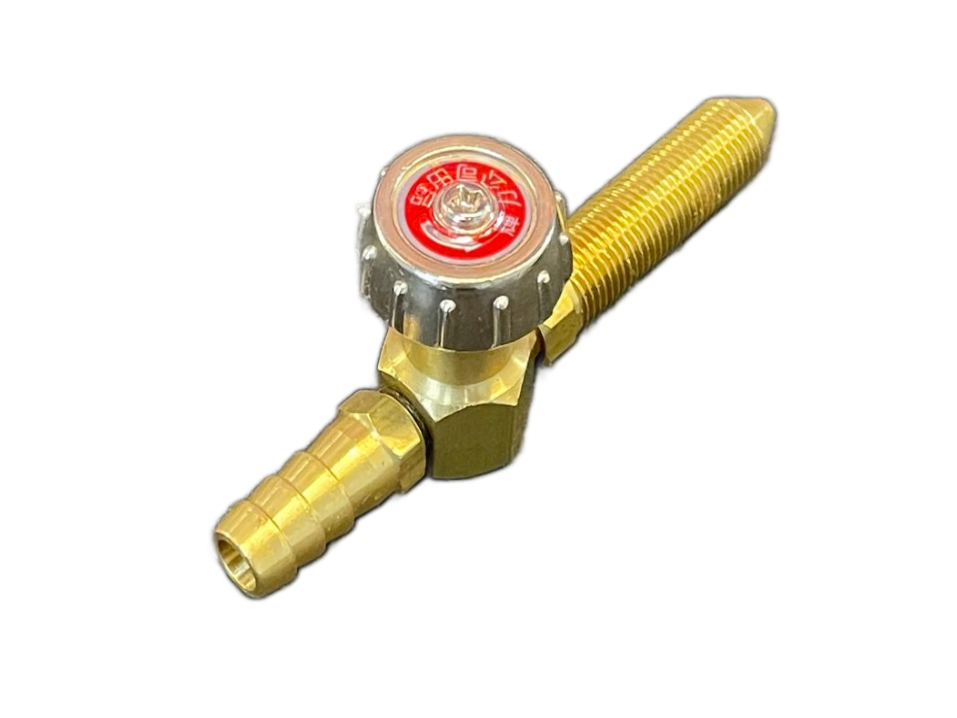

☑Compatible switches:
Standard straight switch

90-degree switch

1/2” switch

small elbow switch
Suitable for 5H large rack   ★Picture
5H large rack dimensions: 370 mm diameter, 195 mm height
Suitable for the four-groove middle and upper rack   ★Picture
Four-groove middle and upper rack dimensions: 340 mm diameter, 180 mm height
Suitable for conjoined middle and upper rack   ★Picture
Conjoined middle and upper rack dimensions: 315 mm diameter, 185 mm height
