Dimensions(length x width x height): 720mm x 260mm x 85mm
Burner dimensions: 10 inches (257 mm diameter)
Distance from the center of the burner to the center of the switch knob: 549±2.5mm

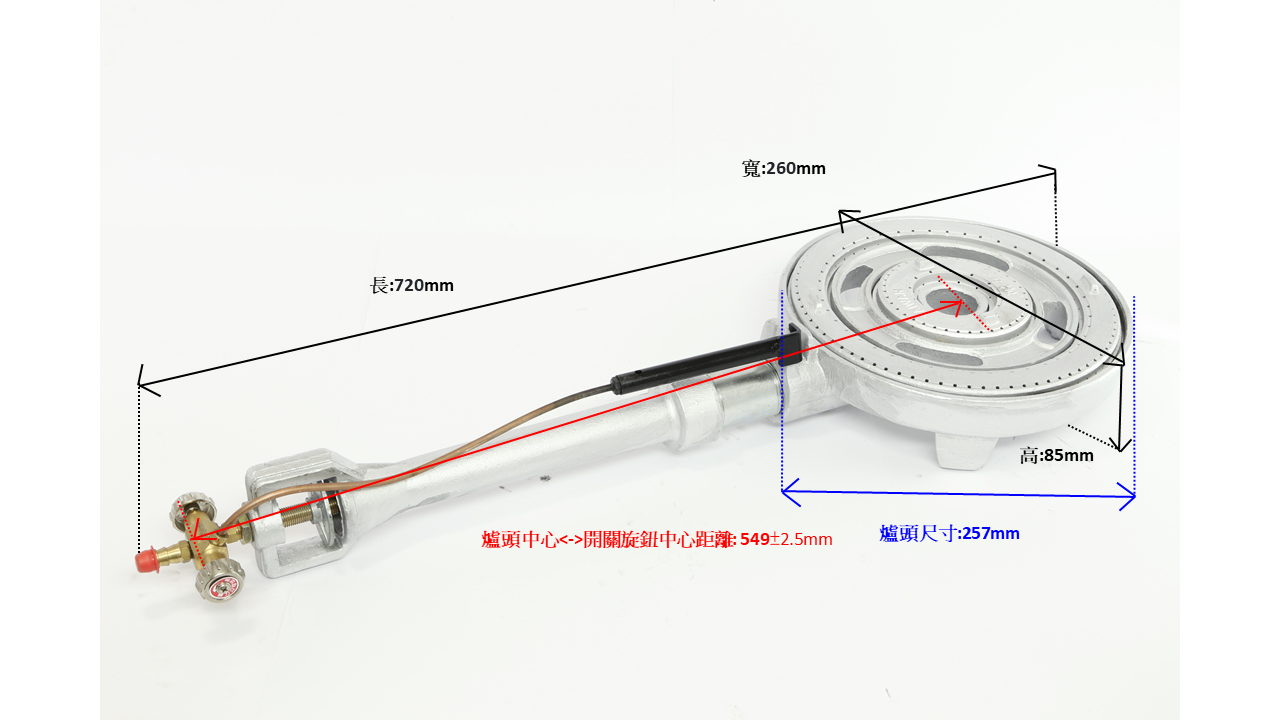

★Dimension Diagram

Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Ideal for stir-frying in medium-large pots.
•Suitable for bottled gas cylinder only. Liquefied natural gas cannot be used because of low pressure.
【Please use the Hueilih medium-pressure regulator】
★User Manual for Commercial Stoves

Features:
•High-heat, fast-cooking stove with an ideal air-fuel ratio.
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Silver-painted inner and outer flame disks induce greater cooking power.
•Uses wind-resistant round head pilot light that is not likely to go out.
•Manual ignition switch, requires external source of ignition.
•Left knob of the manual ignition switch is the main burner, right knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.
•Does not contain upper rack, bowl, and bottom rack.

☑Compatible switches:
•Standard straight switch

•90-degree switch

•1/2” switch

•small elbow switch
