Dimensions(length x width x height): 720mm x 260mm x 85mm
Burner dimensions: 10 inches (257 mm diameter)
Distance from the center of the burner to the center of the switch knob: 572±2.5mm

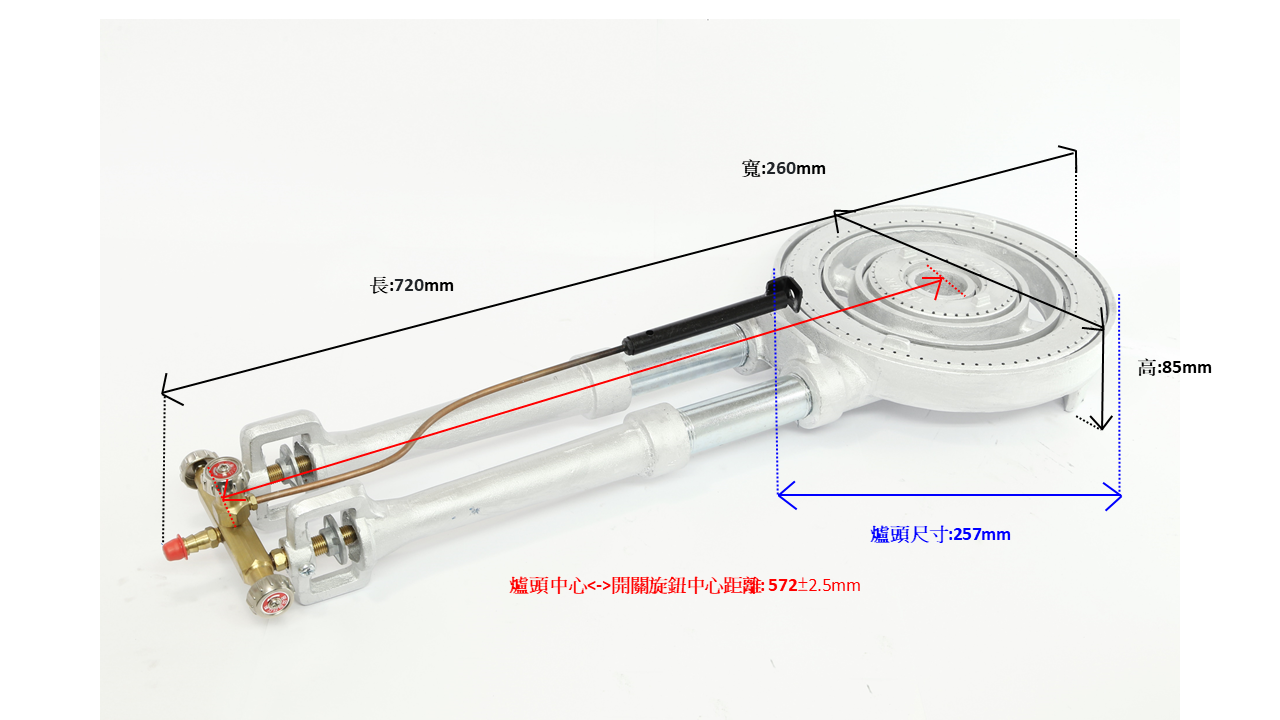

★Dimension Diagram

Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Ideal for stir-frying in medium-large pots.
•Suitable for bottled gas cylinder only. Liquefied natural gas cannot be used because of low pressure.
【Please use the Hueilih medium-pressure regulator】
★User Manual for Commercial Stoves

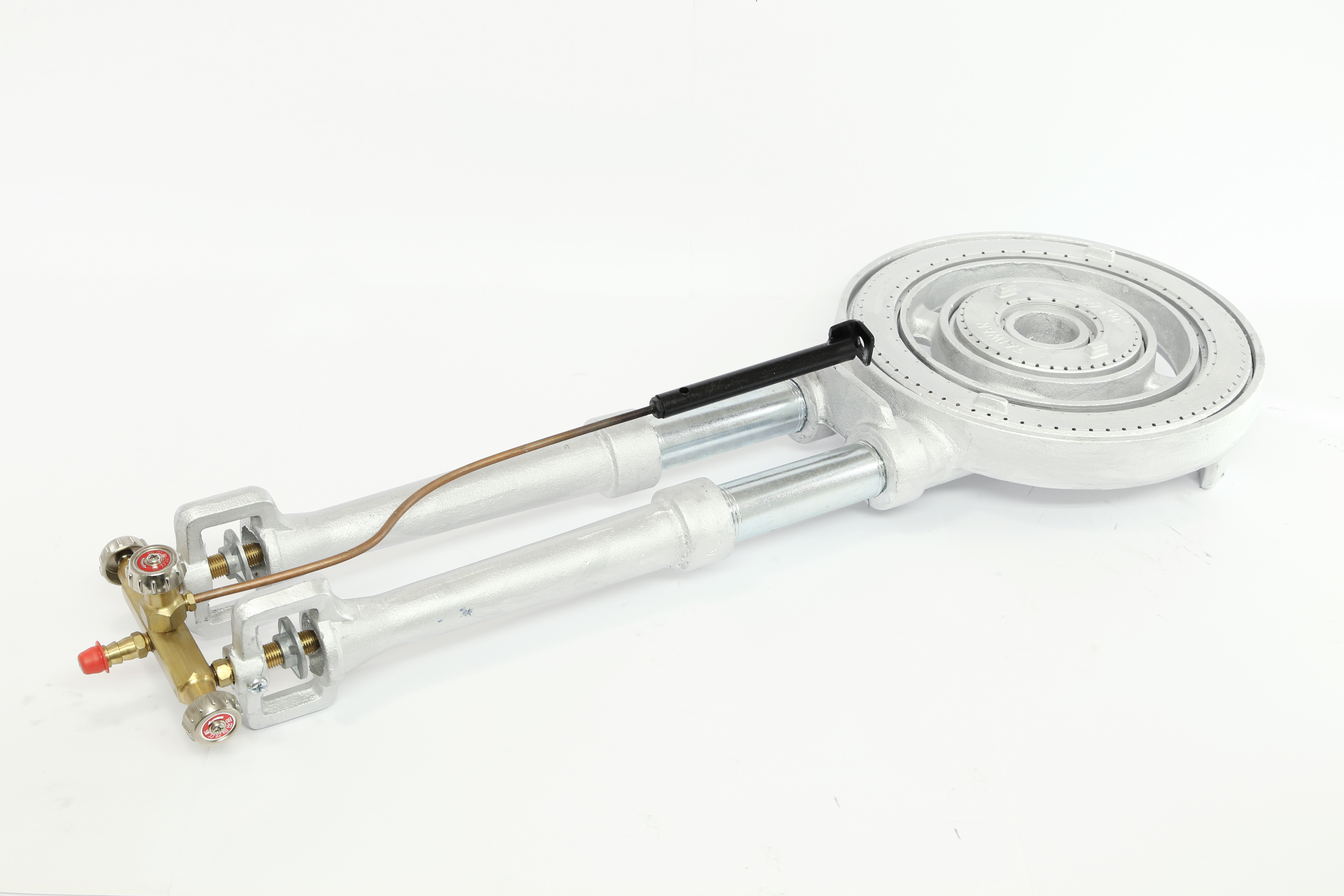

Features:
•High-heat, fast-cooking stove with an ideal air-fuel ratio.
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Silver-painted inner and outer flame disks induce greater cooking power.
•Double-tube switch can control the heat of the inner and outer disk separately. Greater flexibility in heat adjustments. Low heat is ideal for insulation and simmering, high heat is ideal for stir-frying.
•Uses wind-resistant round head pilot light that is not likely to go out.
•Manual ignition switch, requires external source of ignition.

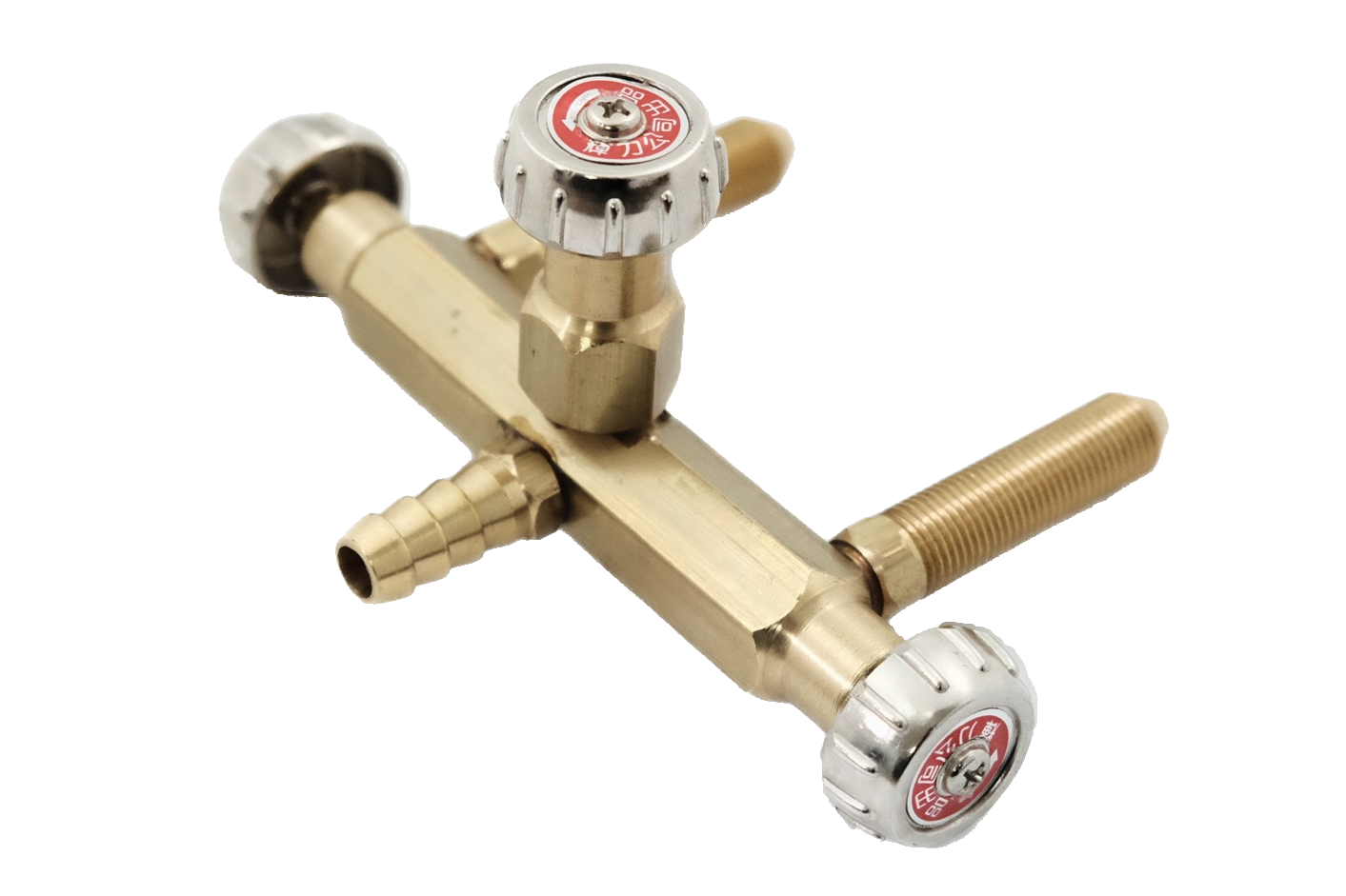

•Left knob of the manual ignition switch is the outer ring main burner, right knob is the inner ring main burner, middle knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.
•Does not contain upper rack, bowl, and bottom rack.

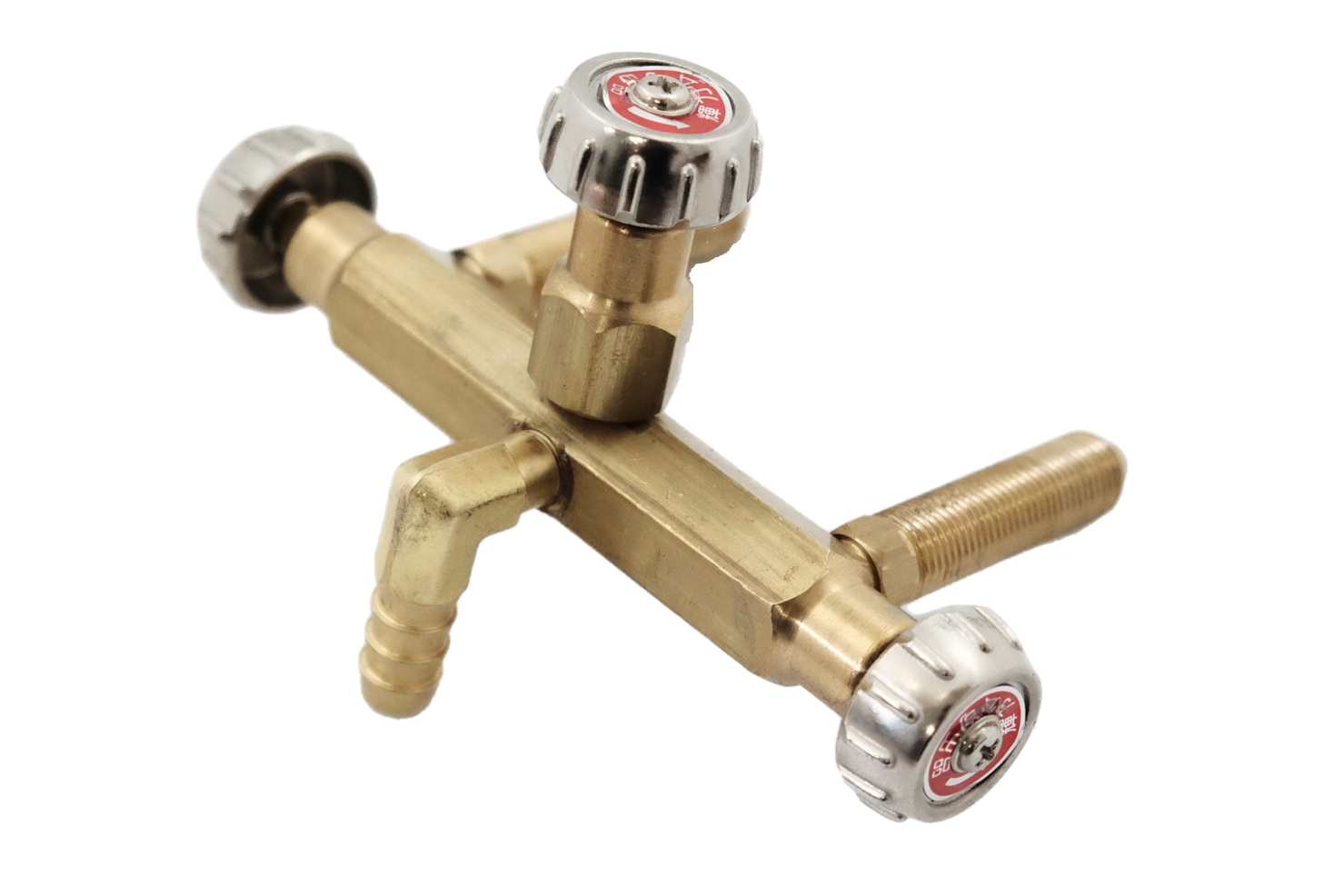

☑Compatible switches:
•Standard straight switch

•90-degree switch
