2020.09.29

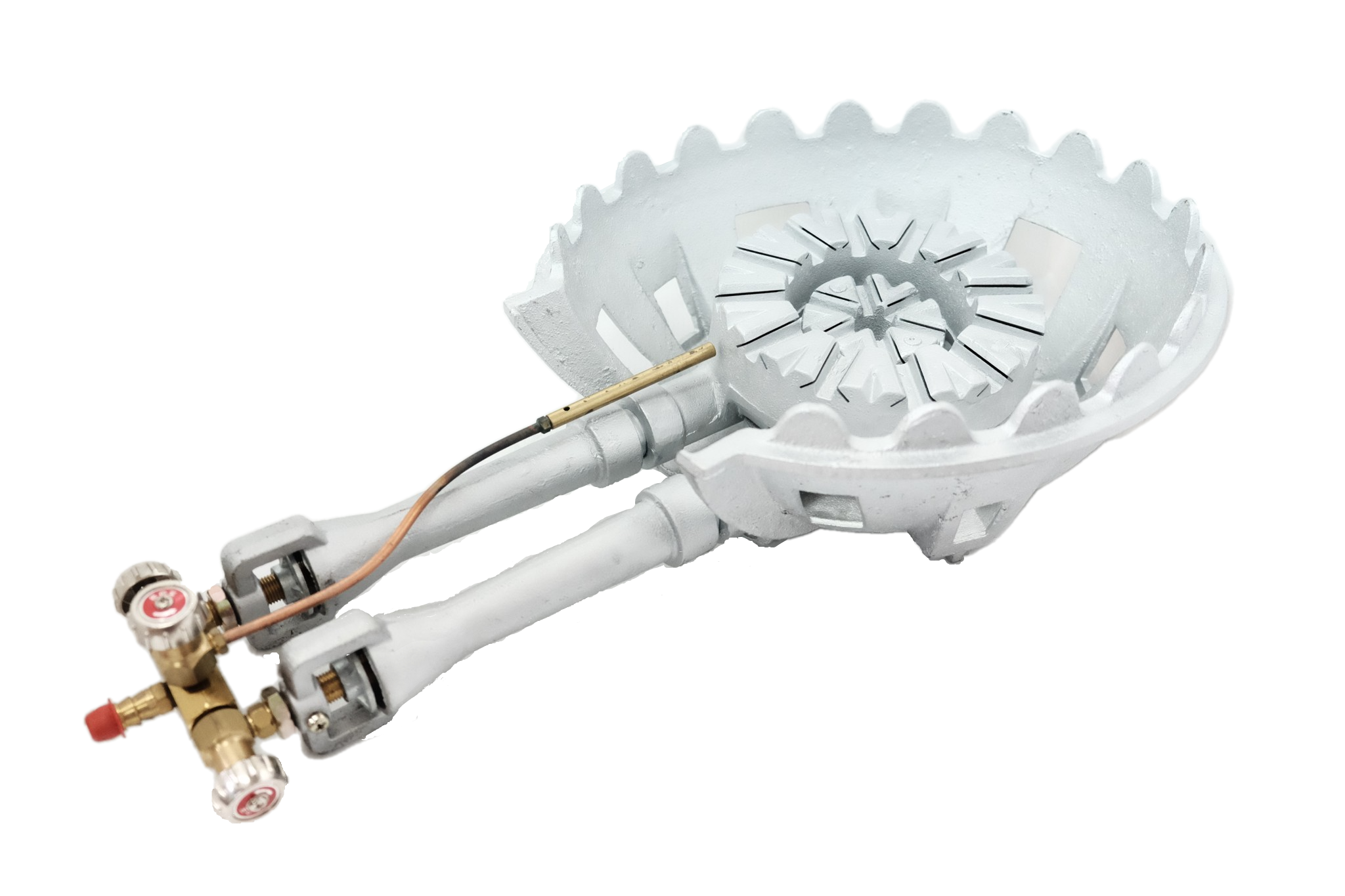

Dimensions, including bowl (length x width x height): 555mm x 330mm x 125mm 【picture 1】

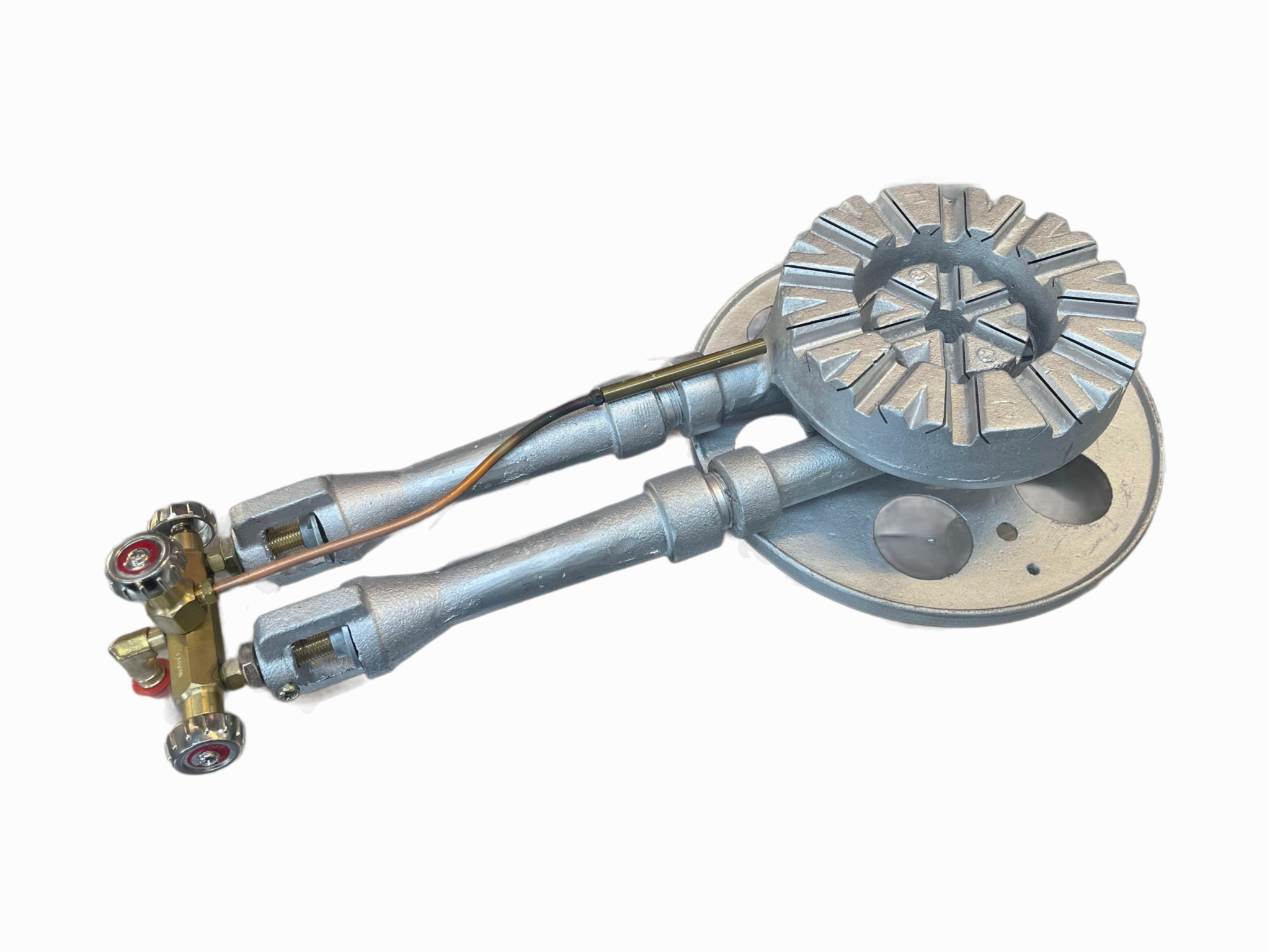

Dimensions, only stove (length x width x height): 470mm x 162mm x 80mm 【picture 2】

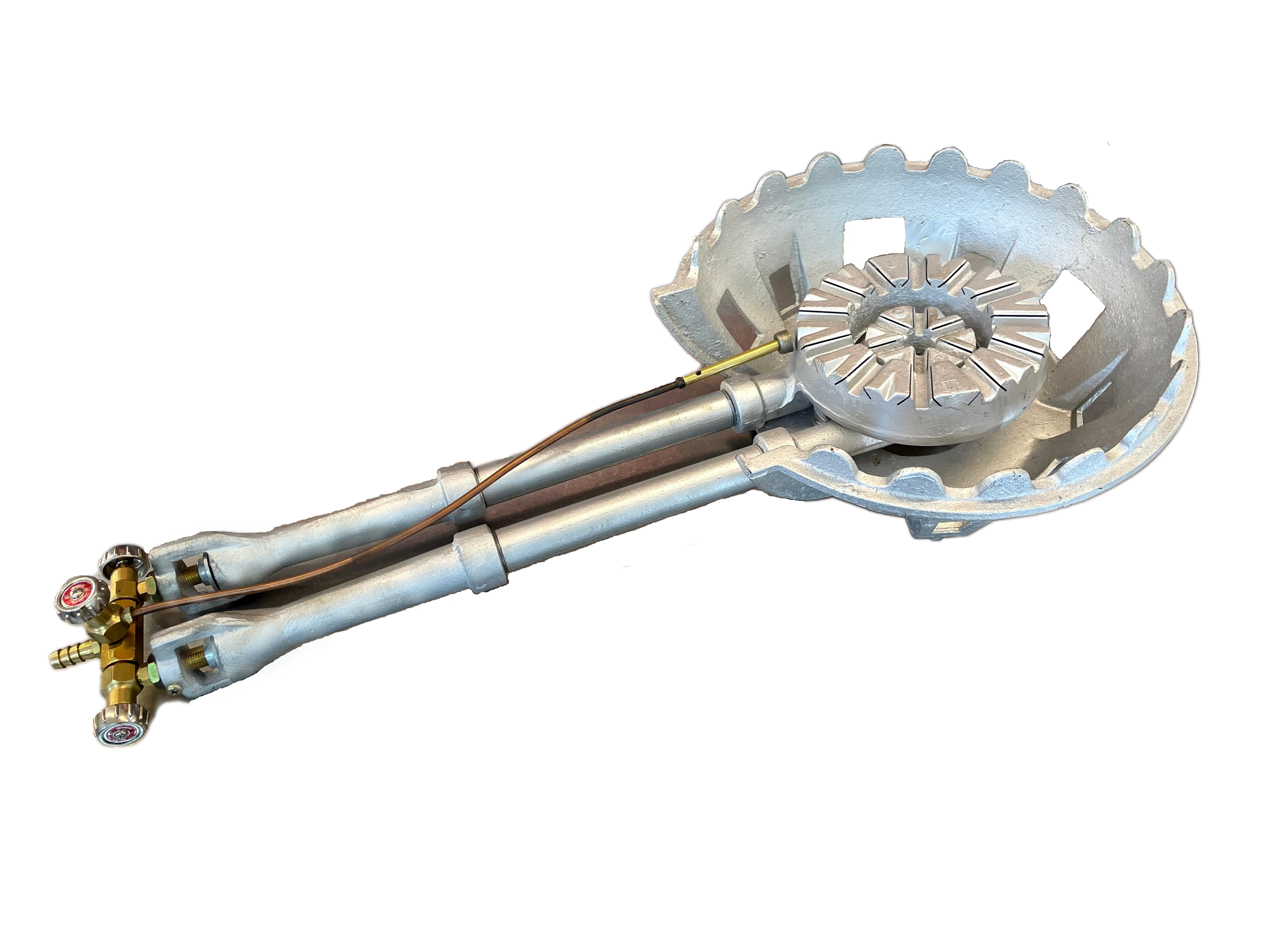

Dimensions, only stove and bottom rack (length x width x height): 510mm x 240mm x 105mm 【picture 3】
Burner dimensions: 6.4 inches (162 mm diameter)
Distance from the center of the burner to the center of the switch knob: 350±2.5mm
Bowl dimensions: 330 mm diameter, 125 mm height

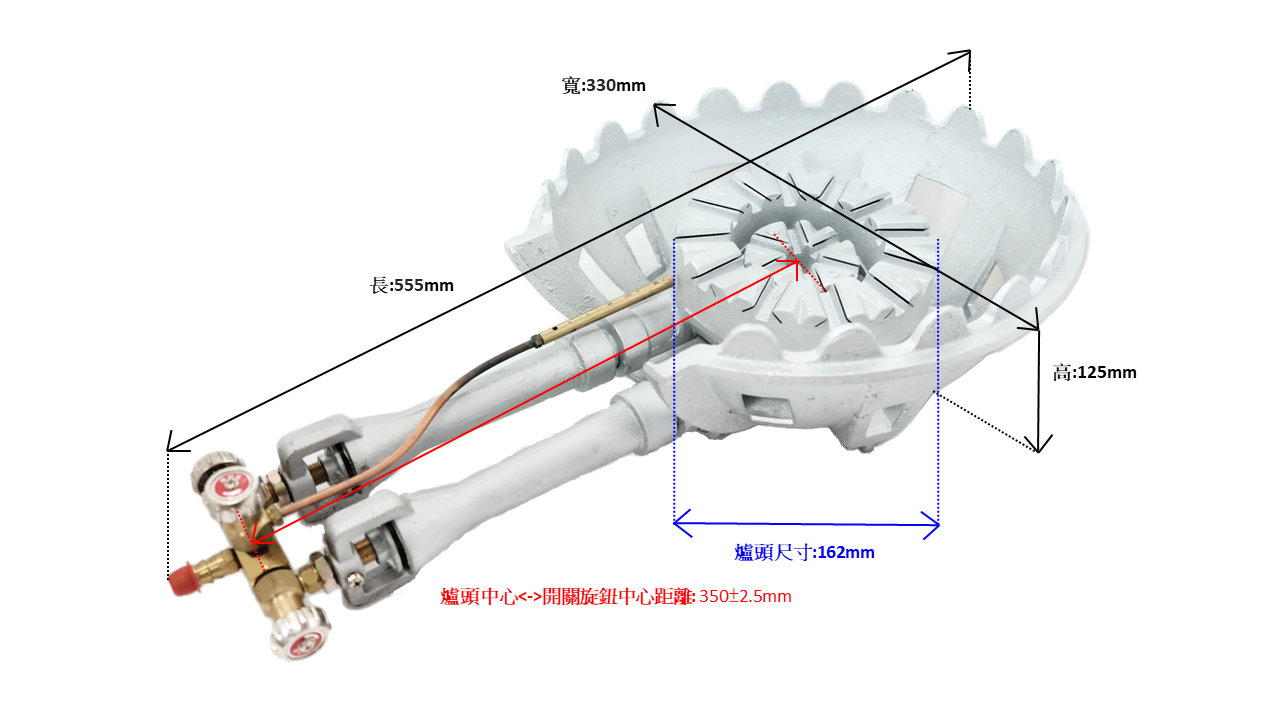

★Dimension Diagram
7B Double-Tube Stove(202-1A)
Dimensions, including bowl (length x width x height): 555mm x 330mm x 125mm 【picture 1】
Dimensions, only stove (length x width x height): 470mm x 162mm x 80mm 【picture 2】
Dimensions, only stove and bottom rack (length x width x height): 510mm x 240mm x 105mm 【picture 3】
Burner dimensions: 6.4 inches (162 mm diameter)
Distance from the center of the burner to the center of the switch knob: 350±2.5mm
Bowl dimensions: 330 mm diameter, 125 mm height
★Dimension Diagram

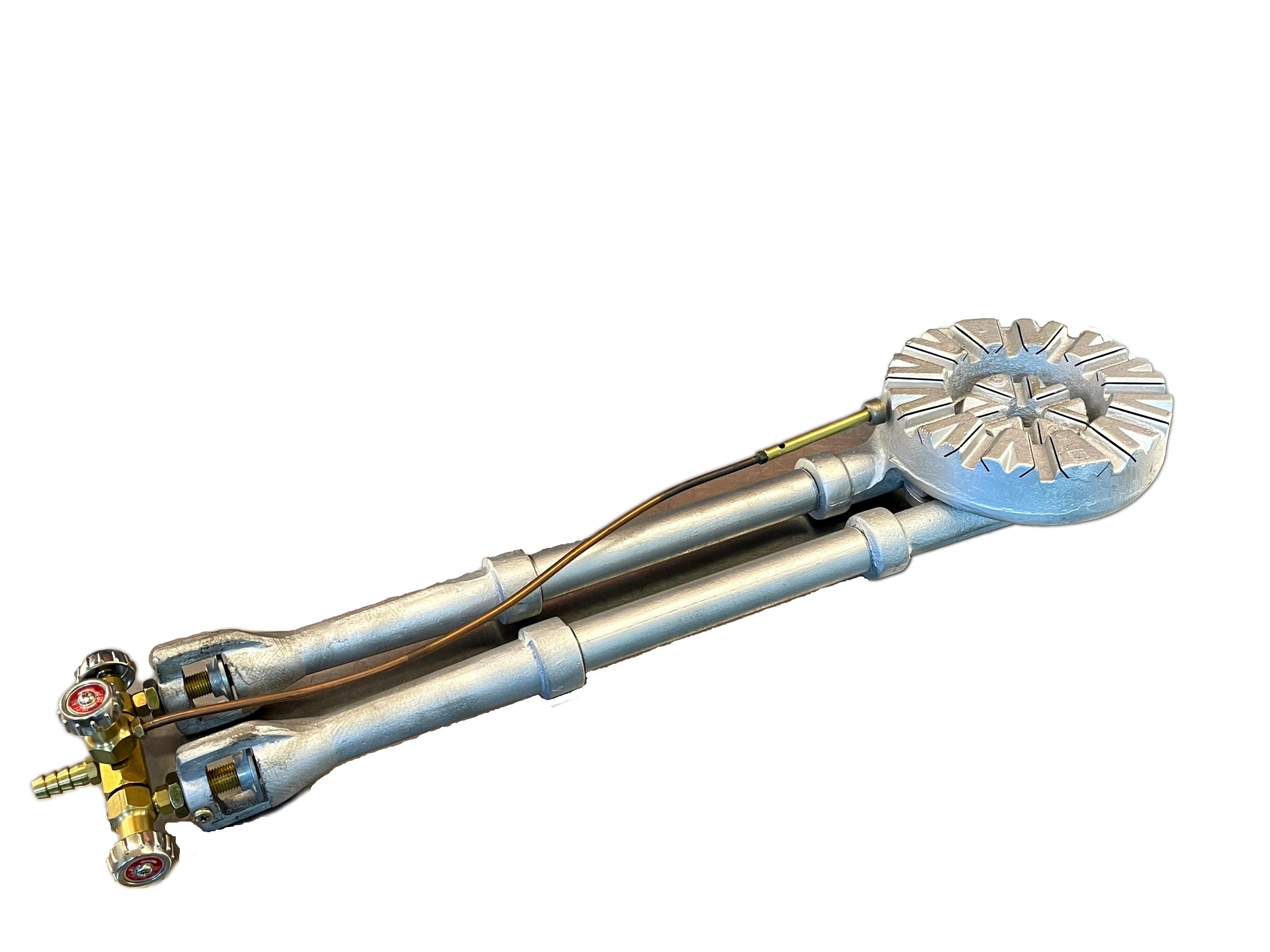

Elongated 7B Double-Tube Stove(202-1A)【picture 4,5】
Dimensions, including bowl (length x width x height): 730mm x 330mm x 125mm
Dimensions, only stove (length x width x height): 645mm x 162mm x 80mm
Dimensions, only stove and bottom rack (length x width x height): 685mm x 240mm x 105mm
Distance from the center of the burner to the center of the switch knob: 525±2.5mm
Dimensions, including bowl (length x width x height): 730mm x 330mm x 125mm
Dimensions, only stove (length x width x height): 645mm x 162mm x 80mm
Dimensions, only stove and bottom rack (length x width x height): 685mm x 240mm x 105mm
Distance from the center of the burner to the center of the switch knob: 525±2.5mm
Functions:
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Ideal for stir-frying in medium-large pots.
•Suitable for bottled gas cylinder only. Liquefied natural gas cannot be used because of low pressure.
【Please use the Hueilih medium-pressure regulator】
★User Manual for Commercial Stoves
•Ideal for all kinds of restaurants, which include: Snack bar, sea food and stir-fried restaurants.
•Ideal for stir-frying in medium-large pots.
•Suitable for bottled gas cylinder only. Liquefied natural gas cannot be used because of low pressure.
【Please use the Hueilih medium-pressure regulator】
★User Manual for Commercial Stoves
Features:
•High-heat, fast-cooking stove with an ideal air-fuel ratio.
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Double-tube switch can control the heat of the inner and outer disk separately. Greater flexibility in heat adjustments. Low heat is ideal for insulation and simmering, high heat is ideal for stir-frying.
•Manual ignition switch, requires external source of ignition.
•Left knob of the manual ignition switch is the outer ring main burner, right knob is the inner ring main burner, middle knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.
•High-heat, fast-cooking stove with an ideal air-fuel ratio.
•High-precision rack design allows the flame to envelop the pot and maximizes the heat energy.
•Double-tube switch can control the heat of the inner and outer disk separately. Greater flexibility in heat adjustments. Low heat is ideal for insulation and simmering, high heat is ideal for stir-frying.
•Manual ignition switch, requires external source of ignition.
•Left knob of the manual ignition switch is the outer ring main burner, right knob is the inner ring main burner, middle knob is the pilot light; turn clockwise to turn off, counterclockwise to turn on.
7B Double-Tube Stove(202-1A) heat and volume test:
▲Tested with 2000 mL lukewarm water on high heat
Tested with 25000 mm H2O standard gas pressure value
•Heat performance: water boils in 1 minutes and 59 seconds
•Volume performance: 78.3db-79.9db
▲Tested with 2000 mL lukewarm water on high heat
Tested with 25000 mm H2O standard gas pressure value
•Heat performance: water boils in 1 minutes and 59 seconds
•Volume performance: 78.3db-79.9db
☑Compatible switches:
•Standard straight switch
•90-degree switch
•Standard straight switch
•90-degree switch
