Safety precaution:
1,The installation of the gas rice cooker should be conducted by professional mechanics.
2,Please read the instructions carefully before use.
2,Please read the instructions carefully before use.
First,Notice before operation:
Notice before operation-1:
1,Check the panel frame to confirm it's the product Hueilih Gas Rice Cooker.
2,Confirm that the type of gas for use marked on the base pedestal is the same as the gas supply.
1,Check the panel frame to confirm it's the product Hueilih Gas Rice Cooker.
2,Confirm that the type of gas for use marked on the base pedestal is the same as the gas supply.
Notice before operation-2:
Please place the cooker on a stable and horizontal surface in case of burning or undercooking of rice caused by incorrect heat sensitizing due to the imbalance of rice and water resulted from unstable placement.
Please place the cooker on a stable and horizontal surface in case of burning or undercooking of rice caused by incorrect heat sensitizing due to the imbalance of rice and water resulted from unstable placement.
Notice before operation-3:
Be careful not to have flammable items around.
1,The side and back of the cooker must be at least 15 cm away from the wall.
2,The upper part must be at least 50 cm away from the wall.
Be careful not to have flammable items around.
1,The side and back of the cooker must be at least 15 cm away from the wall.
2,The upper part must be at least 50 cm away from the wall.
Notice before operation-4:
Please place the cooker in a place with no influence of wind. If the cooker is placed in a windy place, it will lead to flutter of flame and cause uneven heating. It can even result in burn back of flame, burning of switch and further air leakage.
Please place the cooker in a place with no influence of wind. If the cooker is placed in a windy place, it will lead to flutter of flame and cause uneven heating. It can even result in burn back of flame, burning of switch and further air leakage.
Notice before operation-5:
The correct order of placing the cooker:
1,Place the enamel outer pot on the soup tray.
2,Place the inner pot into the outer pot.
3,Then, cover it with a pot lid.
The correct order of placing the cooker:
1,Place the enamel outer pot on the soup tray.
2,Place the inner pot into the outer pot.
3,Then, cover it with a pot lid.
Second,Check before operation:
Check before operation-1:
1,Make sure that the inlet of the cooker is fully inserted into the hose.
2,the steel pipe is firmly coupled with the forend of the hose to prevent gas leaks caused by hose drop-offs.
1,Make sure that the inlet of the cooker is fully inserted into the hose.
2,the steel pipe is firmly coupled with the forend of the hose to prevent gas leaks caused by hose drop-offs.
Check before operation-2:
1,If liquefied gas is used, please apply a 280~350mmH2O low-pressure regulator.
2,It is strictly forbidden to use a low-pressure regulator exceeding 350mmH2O.
1,If liquefied gas is used, please apply a 280~350mmH2O low-pressure regulator.
2,It is strictly forbidden to use a low-pressure regulator exceeding 350mmH2O.
Check before operation-3:
1,Make sure that the inlet fitting of the regulator is firmly coupled.
2,The outlet of the regulator is fully inserted into the hose.
3,The steel pipe is firmly coupled with the forend of the hose to prevent gas leaks caused by hose drop-offs.
1,Make sure that the inlet fitting of the regulator is firmly coupled.
2,The outlet of the regulator is fully inserted into the hose.
3,The steel pipe is firmly coupled with the forend of the hose to prevent gas leaks caused by hose drop-offs.
Third,Notice during operation:
Notice during operation-1:
1,Confirm that the ignition button, heat retention button and cooking button are in upper off position.
2,Make sure the supplemental switch is in vertical off position.
1,Confirm that the ignition button, heat retention button and cooking button are in upper off position.
2,Make sure the supplemental switch is in vertical off position.
Notice during operation-2:
In the case of a first time use of the new product:
1,Please wash the inner pot and the pot lid with dishwashing detergent to remove the protective oil.
2,After cleaning the inner pot, please do not boil water with it to cleanse it, otherwise the surface can be oxidized.
In the case of a first time use of the new product:
1,Please wash the inner pot and the pot lid with dishwashing detergent to remove the protective oil.
2,After cleaning the inner pot, please do not boil water with it to cleanse it, otherwise the surface can be oxidized.
Notice during operation-3:

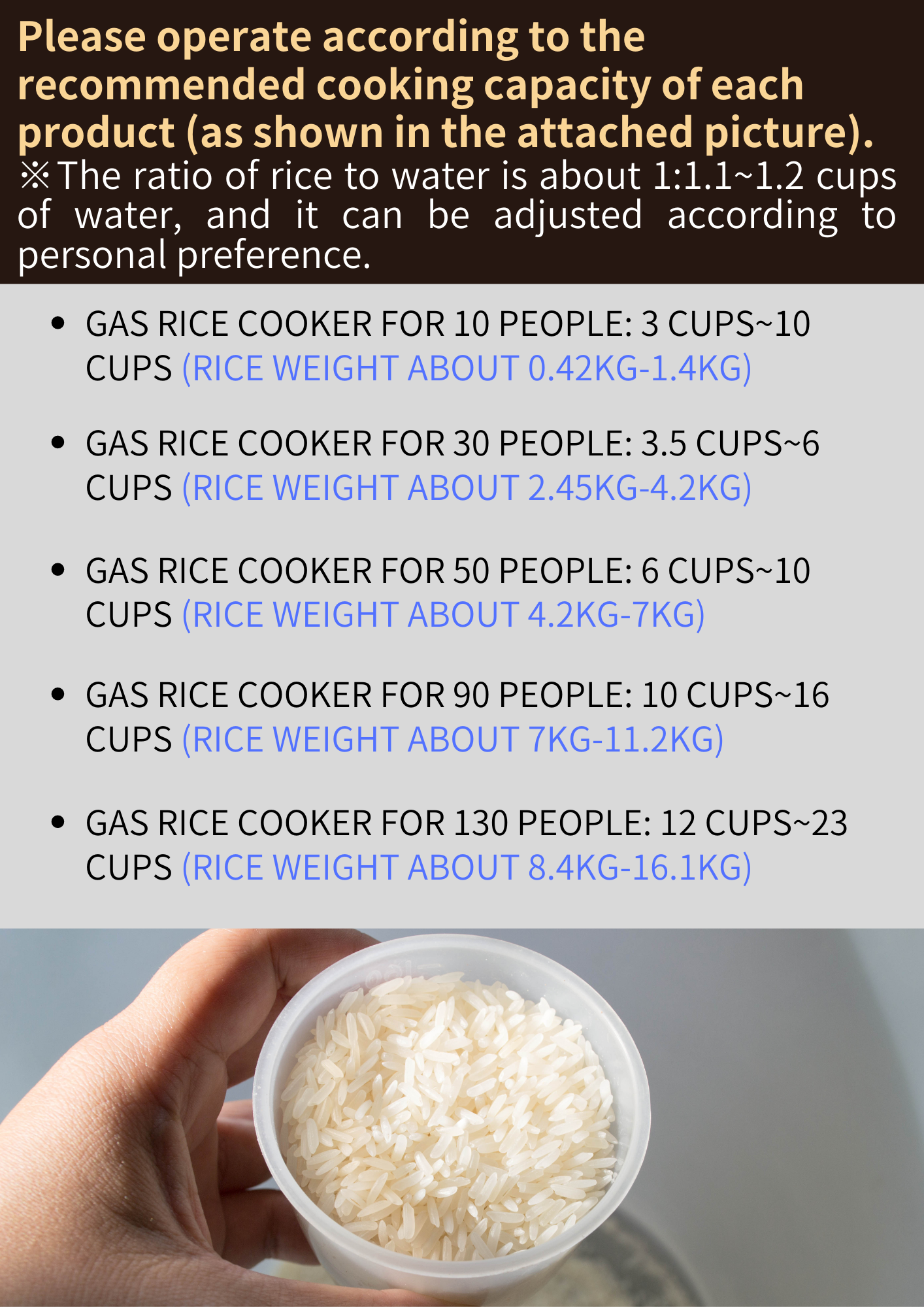

Please operate according to the recommended cooking capacity of each product (as shown in the attached picture):
Please operate according to the recommended cooking capacity of each product (as shown in the attached picture):
Notice during operation-4:
Take the mininum cooking capacity of a rice cooker for 30 people as an example:
1,Add 3.5 cups of rice.
2,Then add 1.1 times the amount of water, which is the equivalent amount of 3.85 cups of water.
Take the mininum cooking capacity of a rice cooker for 30 people as an example:
1,Add 3.5 cups of rice.
2,Then add 1.1 times the amount of water, which is the equivalent amount of 3.85 cups of water.
Notice during operation-5:
It is recommended to soak rice in clean water for 15~30 minutes before cooking, which can make the rice softer and chewier
It is recommended to soak rice in clean water for 15~30 minutes before cooking, which can make the rice softer and chewier
Notice during operation-6:
How to ignite?
1,Rotate the switch of the supplemental switch to the horizontal position.
2,Then press the ignition button, and check that the pilot light is on through the inspection hole.
3,Only then can you press the cooking button and confirm whether the main burner is actually on.
How to ignite?
1,Rotate the switch of the supplemental switch to the horizontal position.
2,Then press the ignition button, and check that the pilot light is on through the inspection hole.
3,Only then can you press the cooking button and confirm whether the main burner is actually on.
Notice during operation-7:
1,Please note that, after the cooking button pops up, the heat retaining button will not pop up following, and the pilot light will continue to burn and proceed to the keep-warm state.
2,If the warm-keeping is finished, be sure to lift the heat retaining button to turn off the pilot light.
This is to prevent the pilot light from idle-running causing danger.
1,Please note that, after the cooking button pops up, the heat retaining button will not pop up following, and the pilot light will continue to burn and proceed to the keep-warm state.
2,If the warm-keeping is finished, be sure to lift the heat retaining button to turn off the pilot light.
This is to prevent the pilot light from idle-running causing danger.
Notice during operation-8:
1,The cooking time is about 19~22 minutes.
2,After the cooking button pops up, it is recommended to keep warm for 10~15 minutes for making it tastier before enjoying the rice.
1,The cooking time is about 19~22 minutes.
2,After the cooking button pops up, it is recommended to keep warm for 10~15 minutes for making it tastier before enjoying the rice.
Notice during operation-9:
After use:
1,Please confirm that all buttons are reset to their original off positions.
2,Make sure the supplemental switch is in vertical off position.
After use:
1,Please confirm that all buttons are reset to their original off positions.
2,Make sure the supplemental switch is in vertical off position.
Fourth,FAQs:
FAQ-1:
1,It's a must to press the ignition button first.
2,After that, cooking button can be pressed.
3,If the ignition button is not pressed and that the pilot light is not actually ignited, forcibly pressing the cooking button will cause the parts to shift.
1,It's a must to press the ignition button first.
2,After that, cooking button can be pressed.
3,If the ignition button is not pressed and that the pilot light is not actually ignited, forcibly pressing the cooking button will cause the parts to shift.
FAQ-2:
If the gas cooker is used for the first time or has not been used for a long time, air may have accumulated in the gas line.
1,Do not place the inner pot in the cooker at this time.
2,Several presses of the ignition button can help release the air to further ignite the pilot light.
If the gas cooker is used for the first time or has not been used for a long time, air may have accumulated in the gas line.
1,Do not place the inner pot in the cooker at this time.
2,Several presses of the ignition button can help release the air to further ignite the pilot light.
FAQ-3:
After every cooking, be sure to completely wash off the leftovers in the inner pot.
This is to avoid burning resulted from that the thermostat has not been restored when cooking the next time.
After every cooking, be sure to completely wash off the leftovers in the inner pot.
This is to avoid burning resulted from that the thermostat has not been restored when cooking the next time.
